SIMAGIC P1000i-RS Inverted HYDRAULIC

Name: SIMAGIC P1000i-RS Inverted HYDRAULIC
SKU: P1000i-RS
Price: 870.39 EUR
Availability: InStock

€870,39 z VAT

In stock

SKU: P1000i-RS Categories: PEDALS, PEDALS Tag: SIMAGIC

Description

P1000i-RS Inverted

Simple design, easy installation

The standard version can be used by installing 8 screws. The unit comes with a mounting plate and controller. The kit can be easily adapted to ready-made brackets and profile brackets for quick installation.

Easy, simple and fast installation

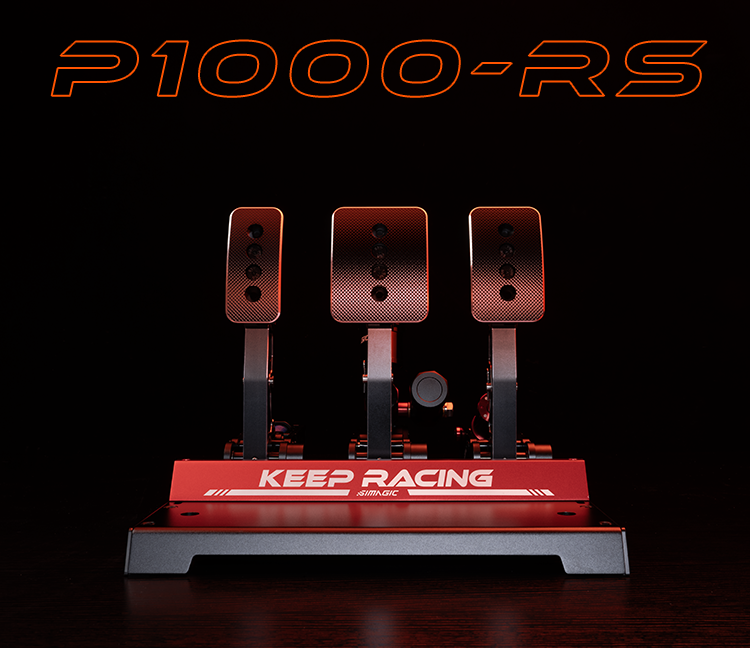

P1000-RS
P1000 Modular hydraulic pedals

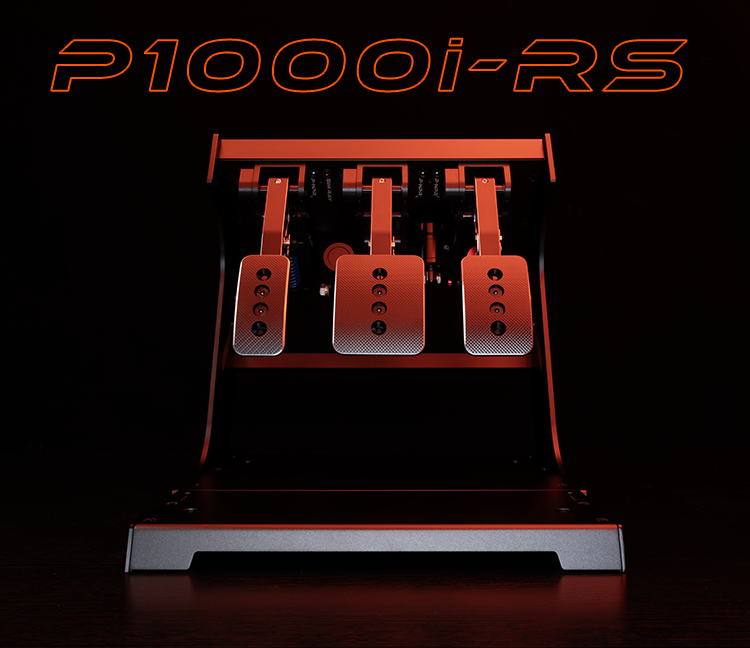

P1000i-RS
P1000i Inverted modular hydraulic pedals

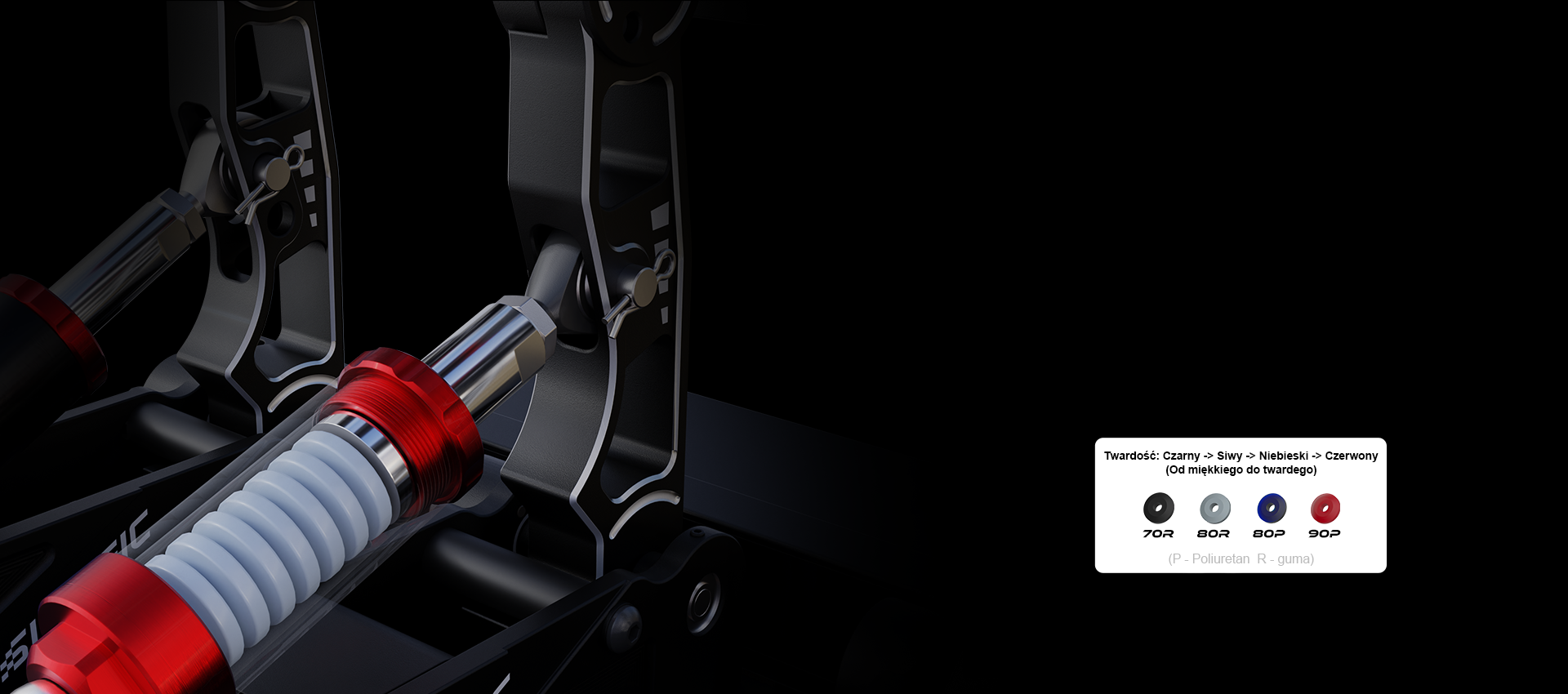

p1000i_inverted_polish_explanation_rubber_poly

Simple, comfortable, versatile.

Modular, integrated design with rubber pads for faster installation. Customize and tune your P1000 to your liking.

Precise control

Loadcell sensor and Hall sensor can be freely switched.

For civilian cars with a long stroke, Hall sensors are more suitable.

For short-stroke racing cars, Loadcell sensors due to higher accuracy.

Carefully made, durable and reliable.

Precision redefined with CNC technology.

Unrivaled durability: withstands tests of more than 200,000 pressures without any defects.

All-metal aluminum alloy construction, provides excellent durability under heavy use.

Multiple regulations:

Pedal spacing,

Pedal height,

Gas pedal force.

It can be adapted to different driving styles.

The tilt angle is adjustable.

Pedal stroke adjustment.

Quick Clutch Adjustment.

P-HPR (Haptic Pedals Reactor) vibration system.

The patented SIMAGIC technology simulates the same forces that can be felt in real cars, offering a realistic feel.

The frequency and amplitude of the vibrations can be adjusted and parameterized to accurately reproduce the handling characteristics of a given car.

Various telemetry parameters and vibration characteristics can be modified and continuously updated via software.

Hydraulic System

Built-in hydraulic system, providing a more accurate reproduction of the damping and rebound of real car brakes.

SimPro Manager

Used to calibrate and set SIMAGIC pedals, it allows free adjustment of dead zones and output curves.

Specification

Resolution: 12 bits (4096)
USB connection: PC, Simagic Base
Adjustable Pitch: Supported
Adjustable Spring Force: Clutch, Brake.
Hall angle sensor/load sensor: (Gas - Hall Angle Sensor), (Brake - Hall Angle Sensor/Load Sensor), (Clutch - Hall Angle Sensor).
Load sensor: 100 kg
Haptic Pedal Reactor: Optional
Hydraulic Cylinder: Optional
Inverted mounting: Optional/Included
Pedal plate: Aluminum alloy with anodized coating
Angle/Position Adjustment: Supported
Linearity Adjustment: Supported
Adjustment: Braking Force Supported
Dead Zone Adjustment: Supported
Pedal Control Box: Included
Material: CNC Aluminum Alloy
Dimensions (Length x Width x Height): 334.8mm x 336mm x 267mm/348mm x489.8mm x 368.5mm
Net Weight: 6.00kg/8.50kg
