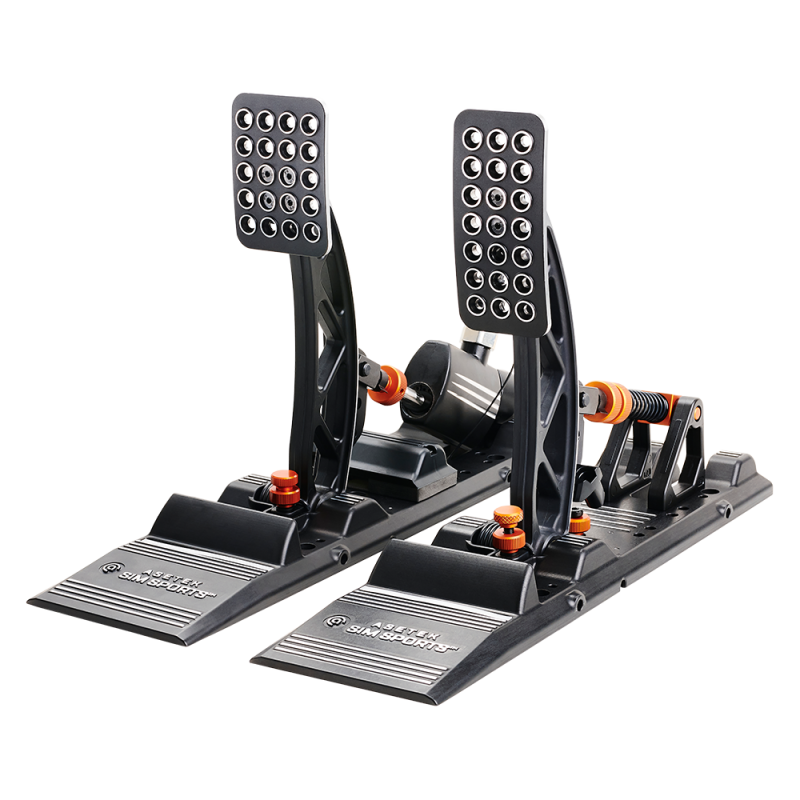

Asetek Incivta S Series Brake + Gas

Braking system

• The patented T.H.O.R.P. (Twin Hydraulic Opposing Rapid Pistons) hydraulic wheel cylinder provides the experience of driving a real racing car.

• Die-cast aluminium pedal arm integrated with durable ball bearings and bronze bushings at the pivot point in the fork.

• Sustainable manufacturing with 100% use of waste on site.

• Automotive-grade pressure sensor.

• The internally designed brake wheel cylinder features sleek CNC detailing, which adds a unique style to the overall look.

• Three interchangeable elastomers to adjust the hardness combined with a physical stop and expansion chamber to mimic the excellent brake feeling of a racing car and do not stress the elastomer too much.

• Manual pre-hardness adjustment.

• The pressure sensor measures from 0 to 100 bar - tested to withstand a repeatable pressure of 100 bar (gasket burst pressure 130 bar).

• 100 bar of pressure equals 180 kg of force on the pedal plate surface.

• Hydraulic brake wheel cylinder made of forged aluminum.

• Pedal arm designed for 200 kg of force and burst pressure of up to 700 kg!

Acceleration System

• Die-cast aluminum pedal arm with integrated long-life ball bearings and bronze bearing at pivot point on the nipple.

• 16-bit wireless throttle position sensor (TPS) with magnet that does not wear out and does not require maintenance.

• The throttle curves are 100% customizable in the RaceHub software.

• Adjustable hardness, stroke and pedal stop.

• A replaceable spring piece provides a greater step in pedal hardness.

• The pedal arm is designed for a force of 200 kg and an explosion pressure of up to 700 kg!

Dimensions:

Depth, width and height: 457 mm x 212 mm x 256 mm

Weight: 3 kg
